MF-STM300 Semi Auto Three-knife Trimmer
Product details
Machine introduction

Semi-automatic Three knife Trimmer MF-STM300 adopts servo drive system and touch screen operation. Fully automatic knife adjustment, high cutting precision, safe and efficient. It can flexibly change the version when cutting small batches, and it is

Main Features
  • 1. Machine adopts a servo transmission system, which can accurately match the operation accuracy of other parts of the machine and the protection of torque setting. greatly improving the cutting accuracy and life span of the machine.
  • 2. The machine has a single-person operation mode and multi-person operation mode, which can be freely converted.

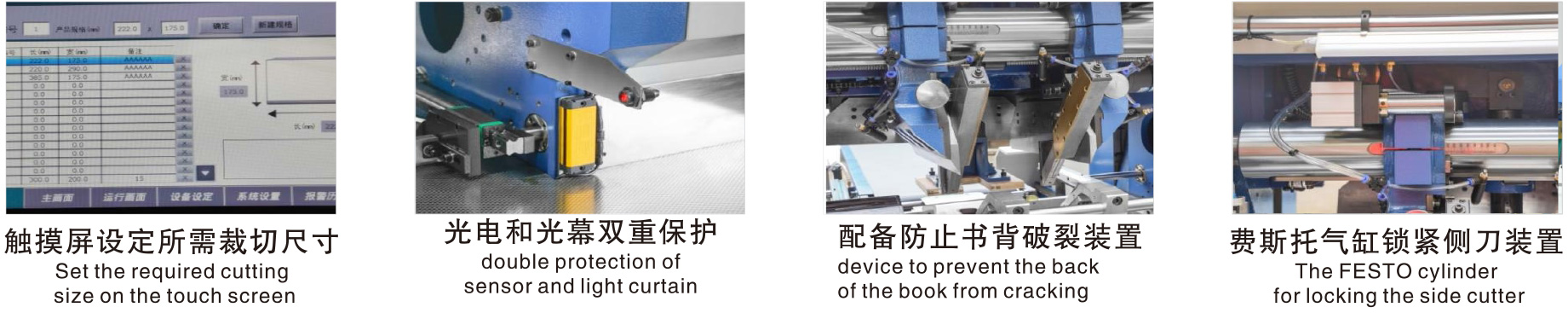

  • 3.Use touch screen can fully automatically adjust the specifications of the front knife, side knife and mechanical book arranger.
  • 4. Equipped with a front knife quick knife installation device and side knife quick knife installation device.
  • 5. Each door is equipped with a protective switch, and the machine automatically stops running when the cover door is opened.
Technical Parameters
ModelNo MF-STM300
Max.Cutting Size(mm) 420*300
Min.Cutting Size(mm) 80*80
Max.Cutting Height(mm) 100
Min.Cutting Book Height(mm) 8
Min.Single Cutting Height(mm) 5
Cutting Speed(times/m) 28
Power(KW) 6.2
The pressure(Pu) 6
Overall Dimension(L*W*H/mm) 2800*2370*1700
Machine Weight(Kg) N.W2800 G.W3000KG
Packaging Size L2280xW1780xH1980mm
