FQ1350A-Plate machine (intelligent)
Main features

Paperboard Sliter Machine is the special mahine developed for cuting heavybook boad,cad board.It is a ideal equipment for case book cover,file board,color carton and hard exercise book5.This machine pos5e5ses reasonable struc-ture,simple operation,smooth cutting edge,high accuracy and high efficiency.Machine is equipped with 7 couples(14 pcs)of individual slitter knives.Each knifes controlled byindividual servo system andwill move precisely as per the parame-ters set in the touch screen.The knives will automatically cut the cardboard withnice effect.Machine could take out the auto feeding system and use manual feeding mode forbig size of cardboard.The auto feeding system is used for second slitter.

Technical Parameters
Model MF-FQ1350A
Cardboard Max Size 1300×1250 mm
Cardboard Min Size 120×150 mm
Cardboard Max Size(auto feeding) 1250×420 mm
Cardboard Min Size(auto feeding) 250x150 mm
Cutting Thickness 1-4 mm
Speed 63 m/min
Automatic feeding Speed 30-150 sheets/min
Cutting Knife 7 Couples
Motor Power 2.2 kw
Machine Dimensions(LxW×H) 1810×2130×1600 mm
Machine Weight 2650 kg

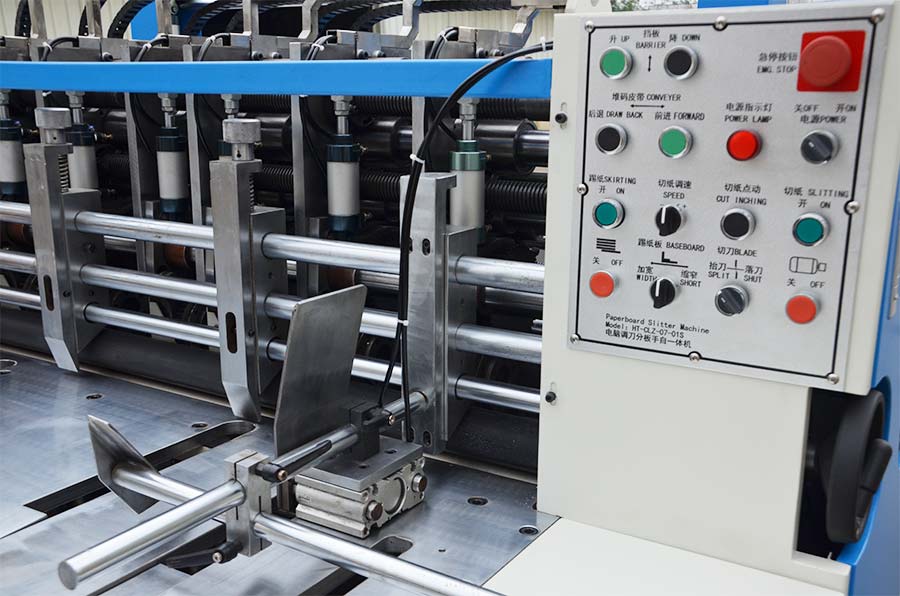

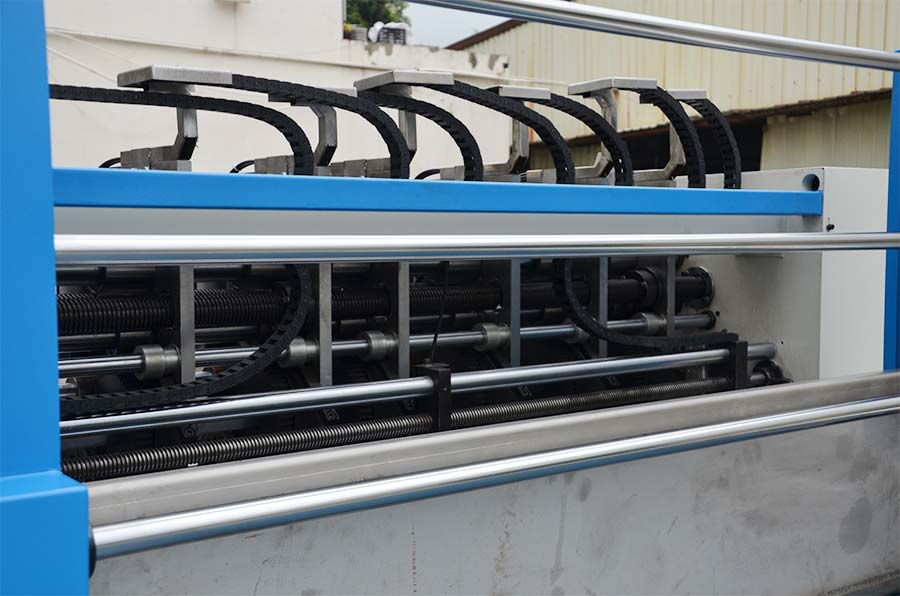

Product Display
