Key words:
Fully automatic three-sided cutting
TechnicalFeatures

*Adopts Janpanese keyance PLC control system,frequencyconversion speedregulation,human-computer

interactiveoperationinferface,scalable dockinglSM system.

*The fuselage is integrated and completely cast,the structure is strong in steel,and the German pentahedronmachining centel isprocessedandmolded atonetimeto ensure high prcision.

*it adopts a double-strengthened brake mechanism,which can safety brake at high speed and power failure to ensure safety.

*The automatic height adjustment function ofthe book makes the conversion easier and faster.

*Quicktoolingdesign,you can easily change the blade without tools.

*Configure 8 overall movable knife boards to ensure full-size coverage.

*Adopts double-side edge silicone lubrication device,the cutting surface is smooth and smooth-automatic oil supply lubrication.

*Fully enclosed protection,safe and low-noise optional devices:anti-break devices can be purchased and installed as needed

TechnicalParameters
Model No. MF-ATT100S
Maxuntrimmed Size 385*310mm
Min untrimmed Size 115*95mm
Max.Cutting Height(mm) 100
Max Finished Size 380*300mm
Min Finished Size 140*90mm
Min Single Cutting Height(mm) 3
Cutting Speed (tmes/m) 15-50
Power(KW) 6.1
Overall Dimension (L*w*H/mm) 3600*2430*1750mm
Machine weight (Kg) N.W3800

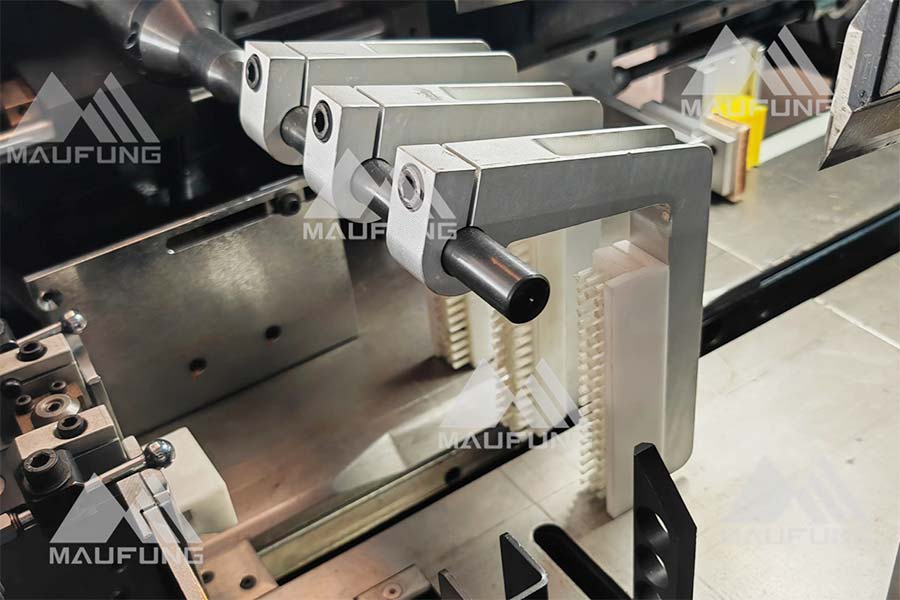

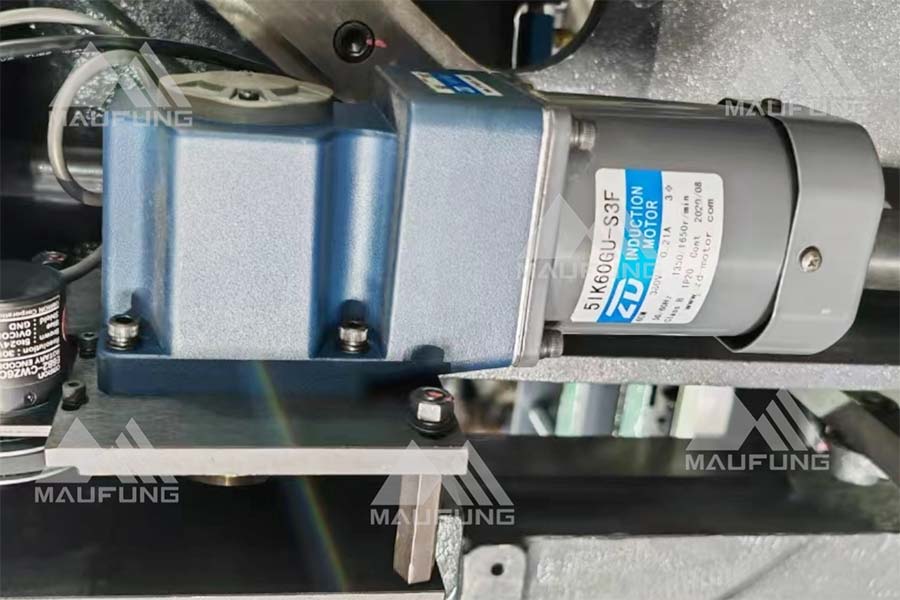

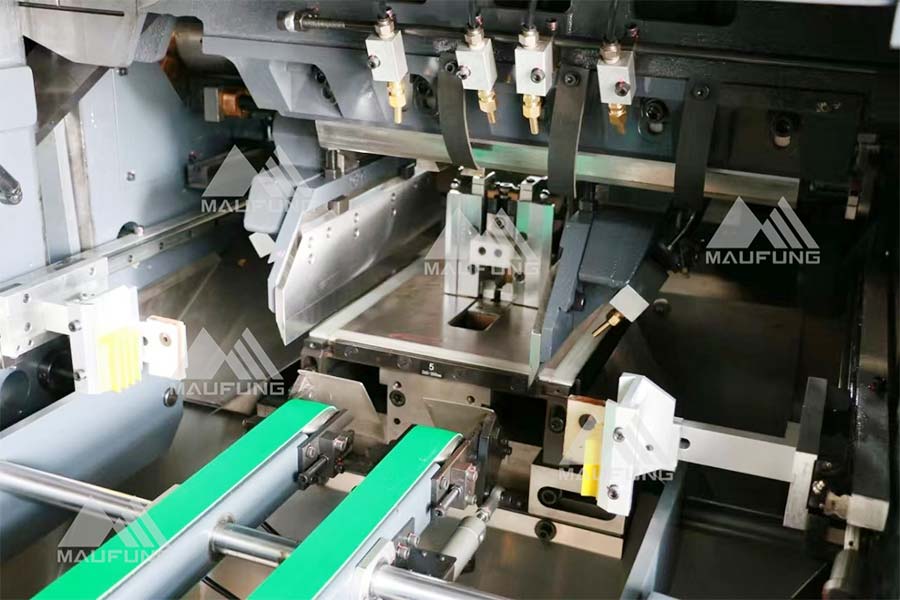

Product Display
