1. Parameters:

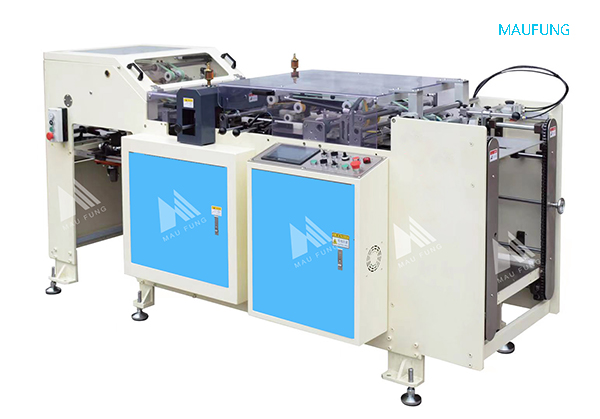

MF-CPM300 Auto Cardboard Punching Machine
Description:
This model is applied for both thin paper and thick cardboard. It is used for punching the cover of notebook, calendar and PP board. The rear paper collecting wheel can be removed by the clutch, so the thick cardboard could fall to the delivery belt directly in cases of out of shape after reversing. This ensures that cardboard is in good situation without curve and also guarantees the punching effect.
Features:
|
|

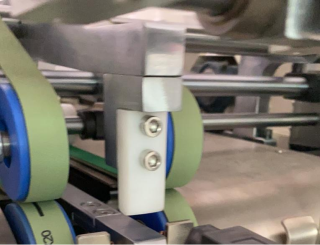

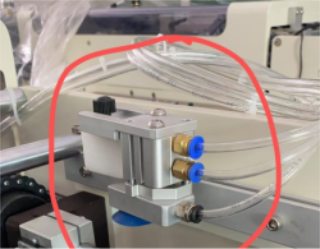

Suction feeder for thick cardboard feeding | Gripper device for thin paper feeding |
|
|

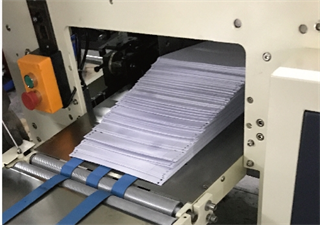

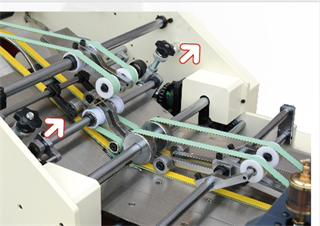

The rear paper collecting wheel can be removed by the clutch, so the thick cardboard could fall to the delivery belt directly in cases of out of shape after reversing. | Belt conveyor easy for operator to collect the finish products. |
Technical parameters：
Model | MF-CPM300 |
Power Supply | 380V/220V, 50HZ,3PH |
Max Paper Size | 420*300mm |
Min Paper Size | 140*60mm |
Punching thickness | 0.5mm- 4mm |
Max Paper loading thickness | 500mm |
Max working speed | 7200 times/hour |
Air compressor | 4-6 bar |
Power | 1.5 kw |
Machine Dimensions(L×W×H) | 3100*2100*1400mm |
Machine Weight | 1200KG |
Machine standard equip with one mold | |
|
|
|
