Description:

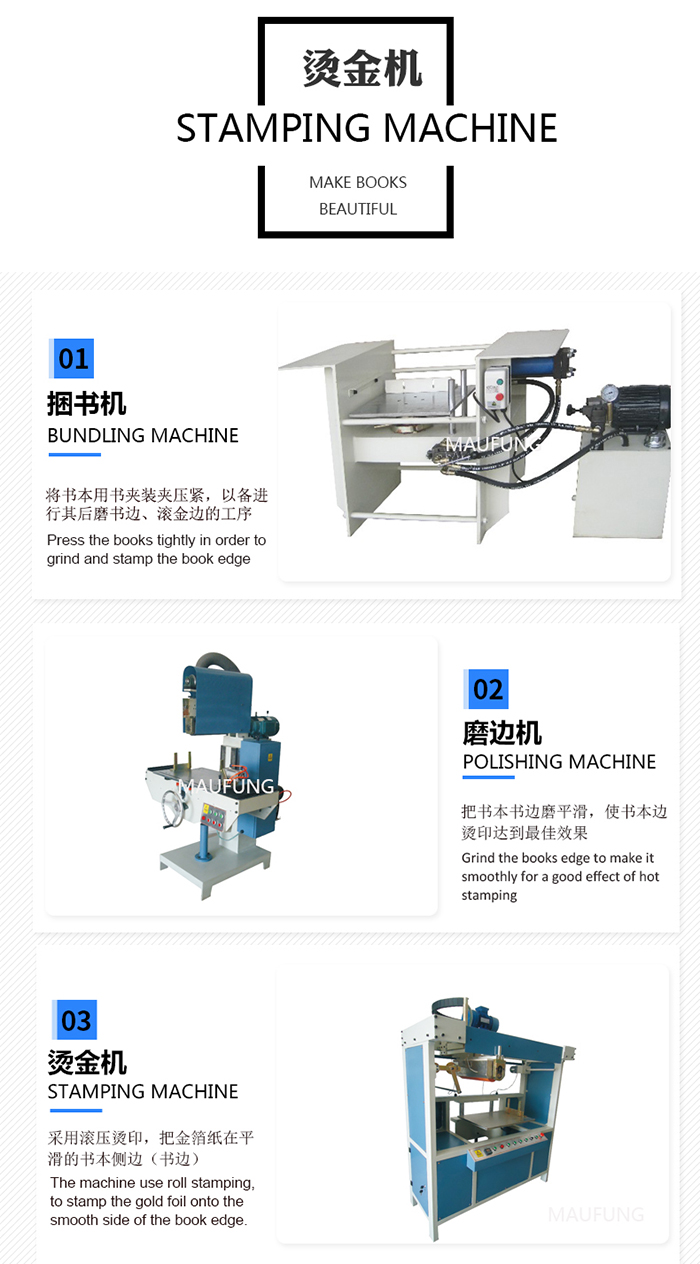

Bundling Books Machine is the matching equipment for the Hot Stamping Machine.The function is to press the books tightly with the book folders in order to grind and stamp the book edge. The machine uses the hydraulic system, has a big bundling thickness, large pressure, no misplacement. The clamp can be rotated 360 degrees after the book is fastened, and the operation is convenient.
Parameters:
Model | MF-400A |
Rated Voltage | 380V/220V, 50HZ |
Rated Power | 1.5KW |
Max Bundling Range | 390x390mm |
Min Bundling Range | 70x70mm |
Machine Dimensions(L×W×H) | 1500x600x820mm |
Machine Weight | 480kg |
|
|
|
